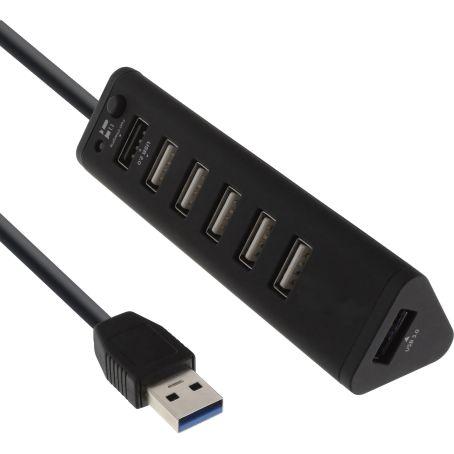

USB 3.2 Gen 1 hub

UPH360S

Specifications:

1.Combined USB 3.2 Gen.1 and USB 2.0 Connectivity: One USB 3.2 Gen.1 port with up to 5 Gb/s for fast data transfers, plus six USB 2.0 ports with up to 480 Mb/s for versatile connection options.

2.Integrated Fast Charging Port: One of the USB 2.0 ports enables fast charging of devices with up to 2.1 A

3.Unique Status Indication: A red LED indicates charging mode, a green LED signals active data transfers.

4.Easy Integration: Plug-and-play functionality without driver installation ensures quick commissioning.

5.Compact, Robust Design: Lightweight ABS plastic housing for flexible use in limited space.

6.The Smart Hub is a reliable and powerful solution for expanding USB ports in demanding IT environments. It combines a USB 3.2 Gen1 interface with a data rate of up to 5 Gb/s for fast file transfers with six additional USB 2.0 ports for further peripheral devices.

7.An integrated fast charging port with up to 2.1 A ensures rapid power supply to mobile devices, provided an optional 5 V DC / 3 A power supply is used.

8.The LED status indicator keeps you informed of the current operating status at all times: red LED for charging mode, green LED for data transmission.

9.Thanks to the plug-and-play function, the hub can be integrated into existing systems immediately without additional driver installation.

10.The compact and robust ABS housing is ideal for use in limited space or in mobile work environments. With a cable length of 50 cm, the hub also offers sufficient flexibility for various application areas.

11.Input/Output Voltage: 5.0 V DC
12.Input Current: 1x DC port 3.5 x 1.35 mm
13.Cable Length: approx. 50 cm
14.Dimensions: 120 x 31 x 28 mm (LxWxH)
15.Weight: 60 g

16.Cable Length: 1 m USB-to-DC cable (3.5 x 1.35 mm)
