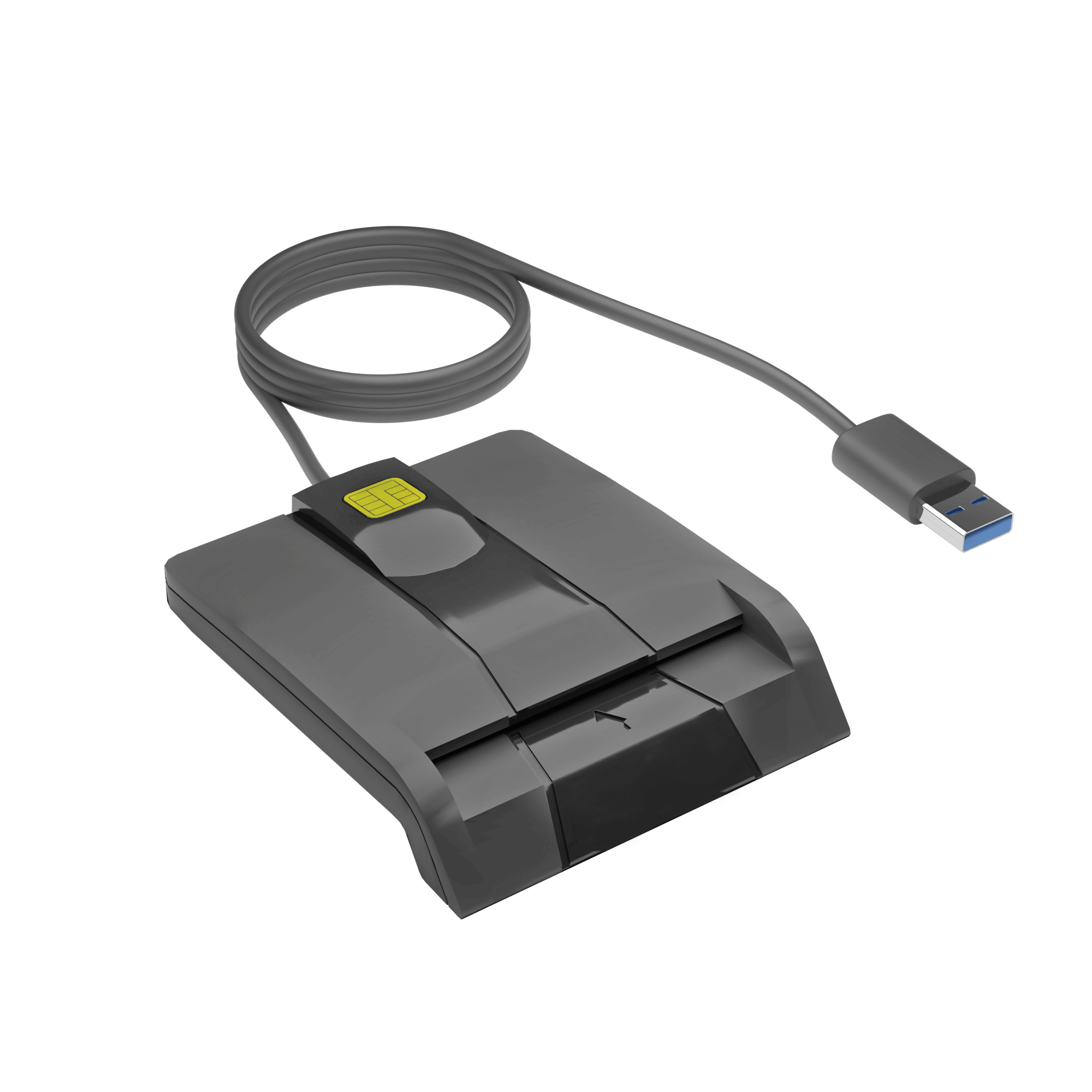

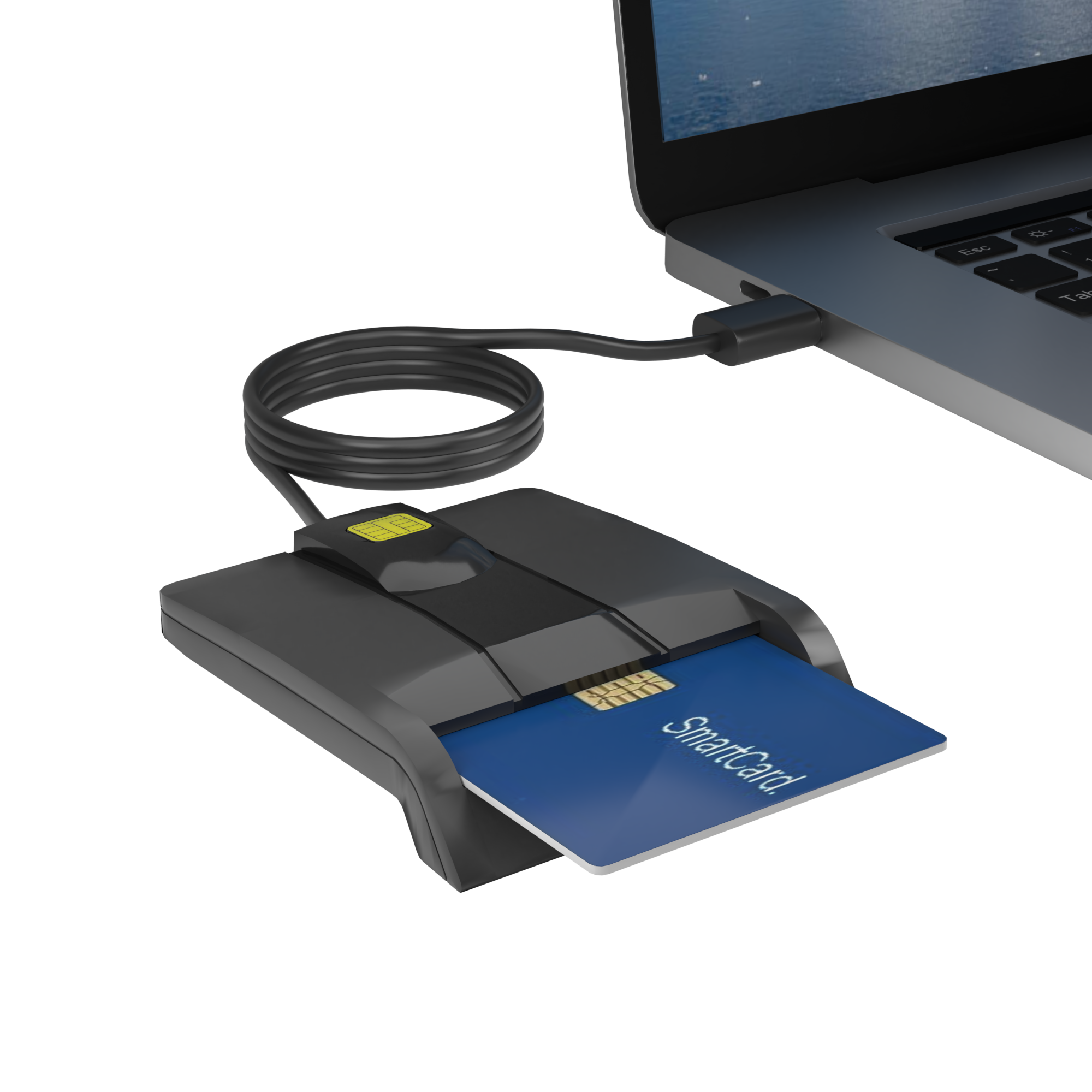

smart card reader

CSI691S

Product Spec：

1. Fully compliant with high-speed USB 2.0 transmission protocol, the maximum transmission speed up to 480Mb / s.

2.Plug & play simplicity.

3.Supports bus-powered modes.

4.Based on ISO-7816 implementaion.

5.Supports T=0,T=1 protocol.

6.Support the following Asynchronous and synchronous smart cards interfacea:

* Based on ISO7816 implementation, T=0 and T=1 asynchronous card:

* Configurable hardware auto error detectiond:

* Card Voltage: 5V, 3V, 1.8V

Based on USB-CCID Class, TPDU level

Compatible with Microsoft USB-CCID driver

7.Card Supports: 1.8 V/3 V/5 V cards PC/SC 1.0 and 2.0; ISO/IEC 7816 class A, B and C

8.Compatibility: eID, DNle

9.Operating Temperature: 0–60 °C

10.Operating Humidity: < 80 % RH (non-condensing)

11. Meets Microsoft WHQL USB Smart Card Reader requirements.

12. Supports SIM port for Subscriber ldentity Module Card for phone book editing

13.Material：ABS

14.System Requirements: Windows or Mac OS

15.Unit Dimensions:（ L x W x H ) 84.5 x 65 x 16 mm

16.Unit weight： 65g

17.Cable Length: 100 CM ±5%，OEM customization
