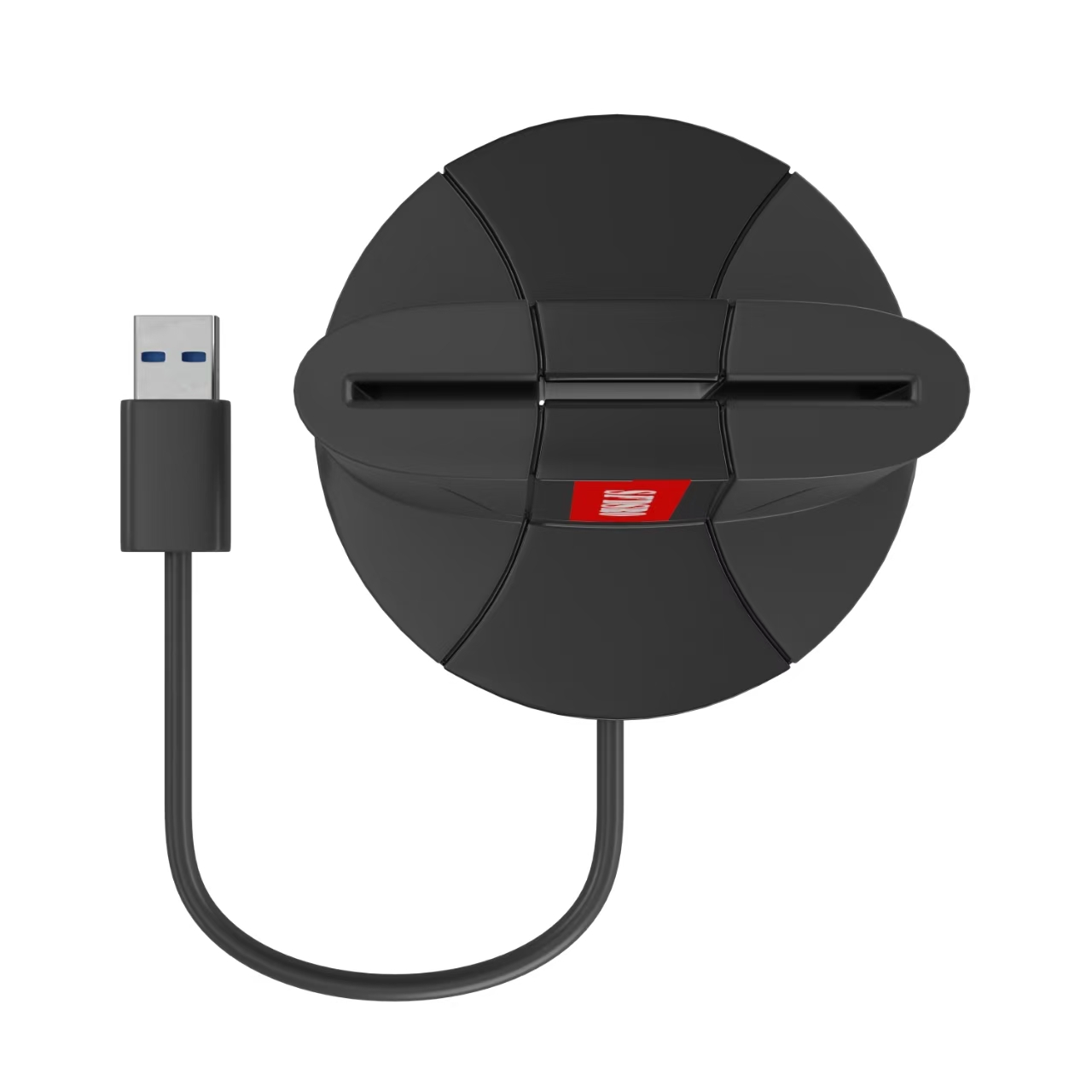

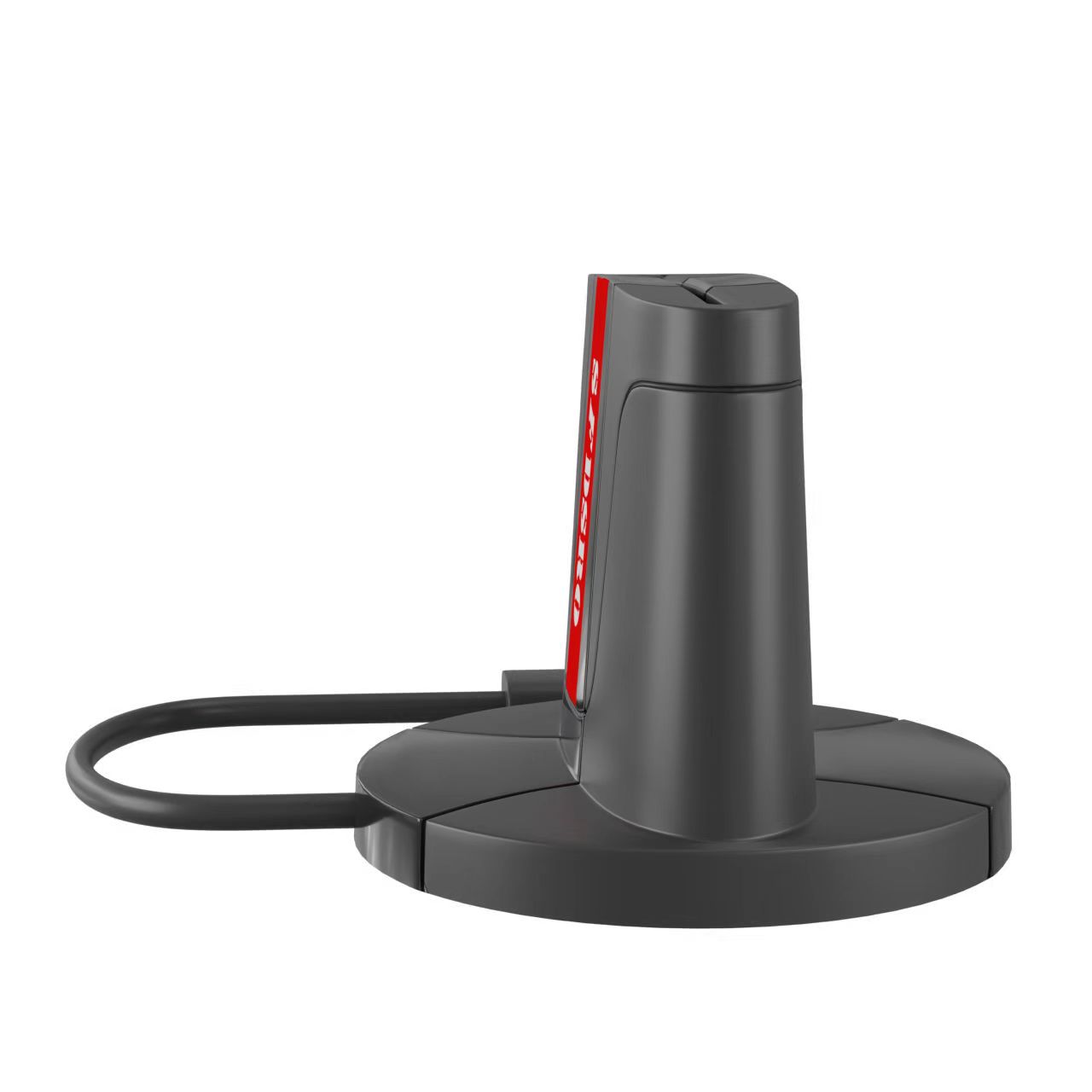

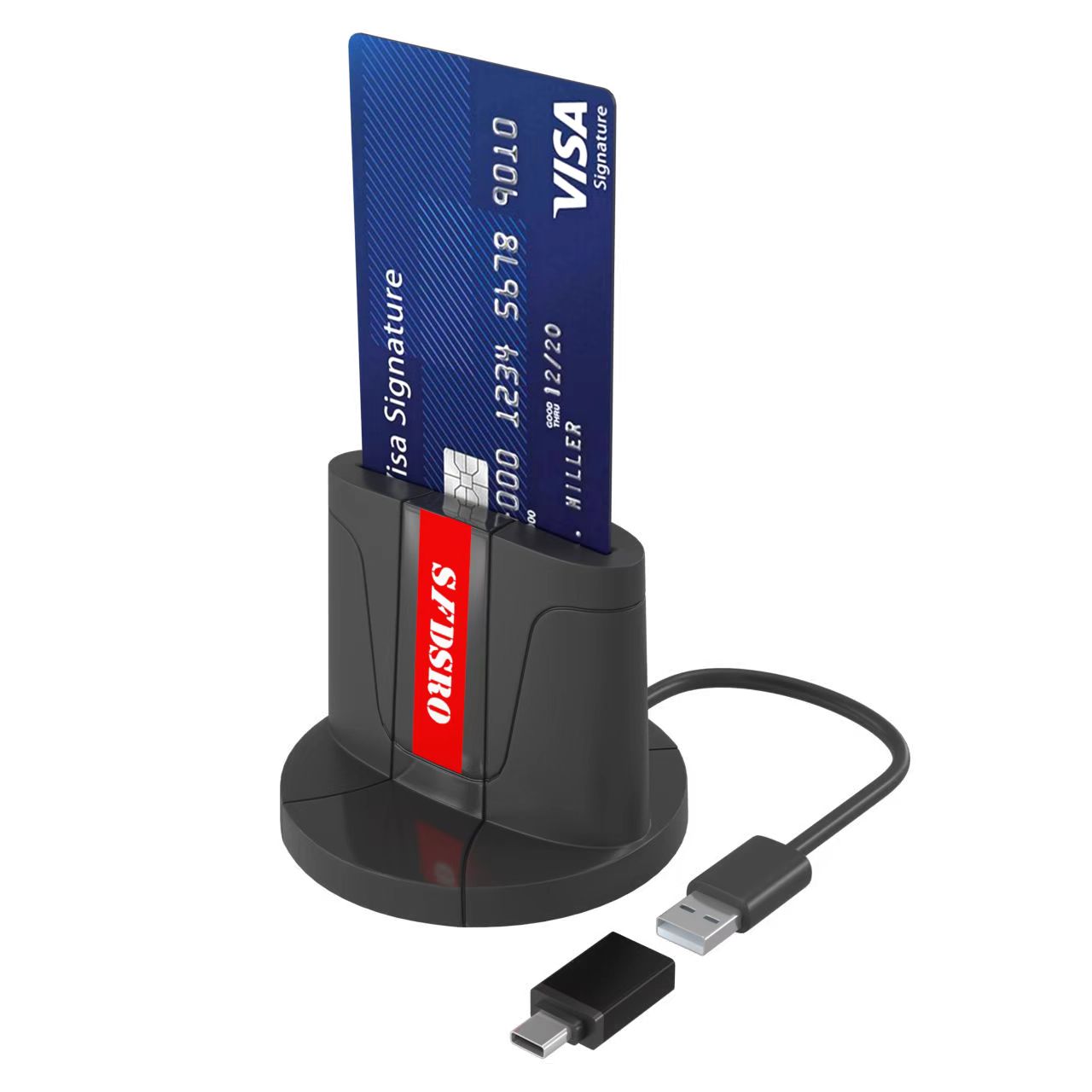

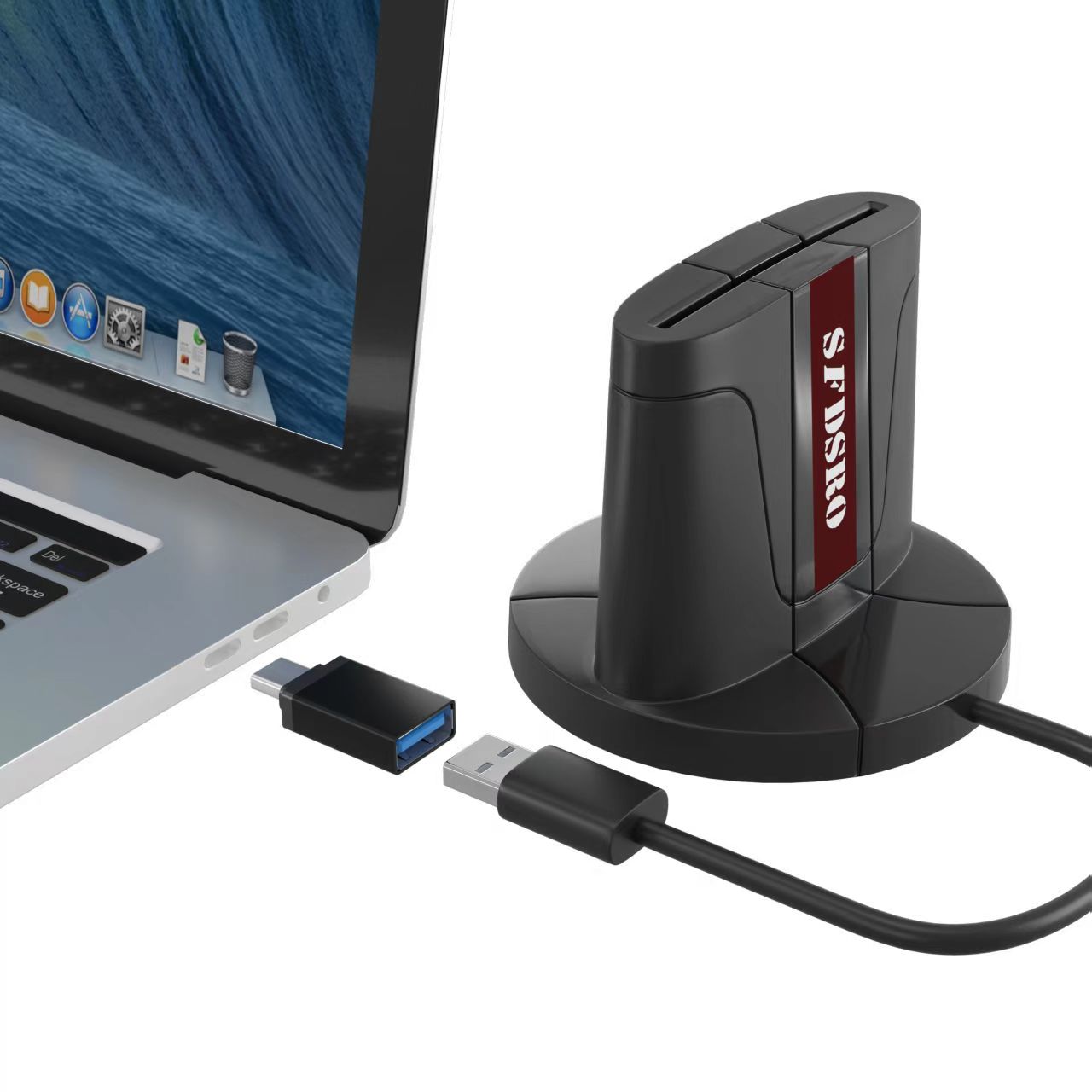

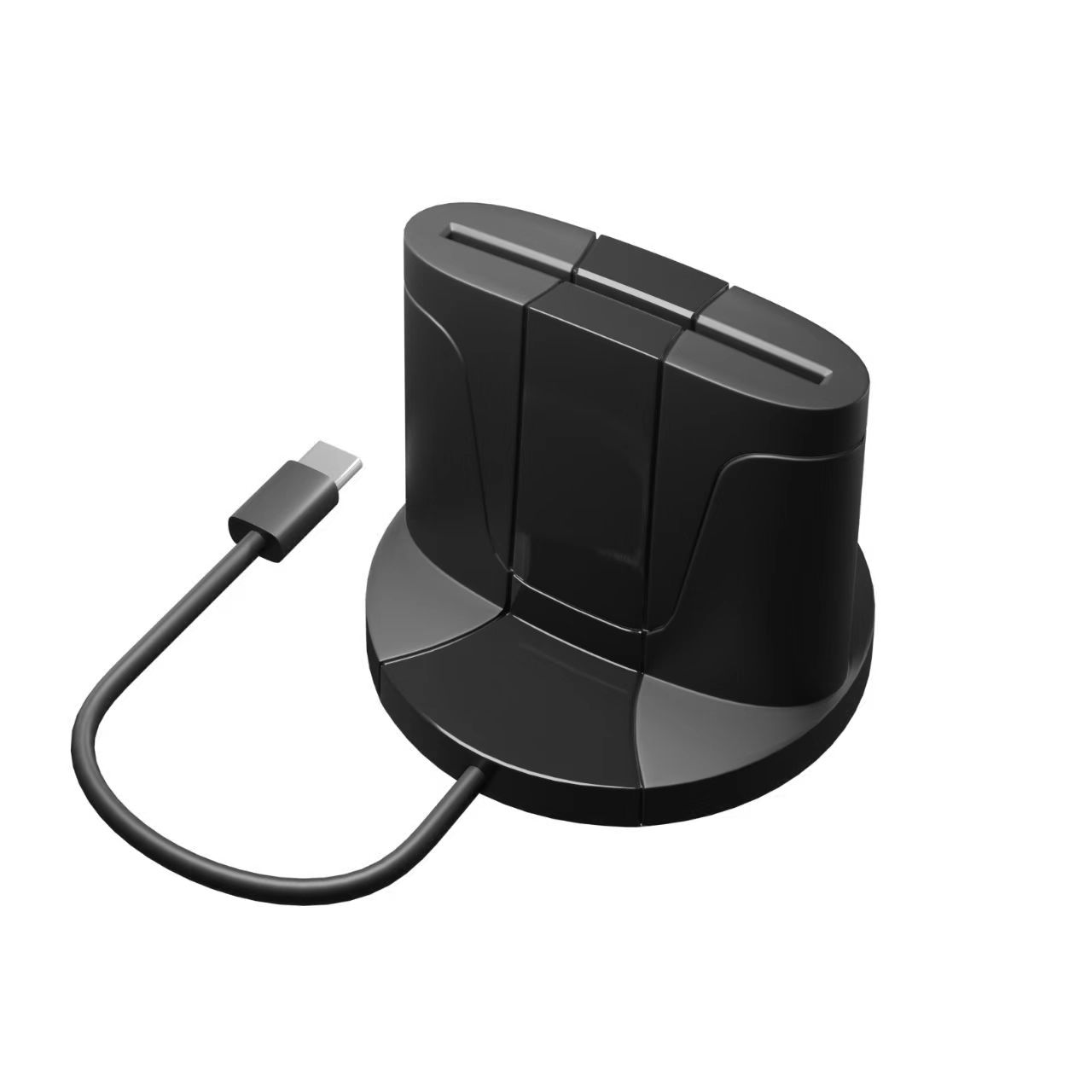

Desk smart card reader

CSI682

Product Spec：

1:   Fully compliant with high-speed USB 2.0 transmission protocol, the maximum transmission speed up to 480Mb / s.

2: Plug & play simplicity.

3: Supports bus-powered modes.

4: Based on ISO-7816 implementaion.

5: Supports T=0,T=1 protocol.

6: Support the following Asynchronous and synchronous smart cards interfacea:

* Based on ISO7816 implementation, T=0 and T=1 asynchronous card:

* Configurable hardware auto error detectiond:

* Card Voltage: 5V, 3V, 1.8V

    Based on USB-CCID Class, TPDU level

    Compatible with Microsoft USB-CCID driver

7: Meets Microsoft WHQL USB Smart Card Reader requirements.

8: Supports SIM port for Subscriber ldentity Module Card for phone book editing

9：Material：ABS

10：Operating system：Windows 2000 SP4 / XP SP3 / 2003 / Vista / 7 / 8 / 10 / Mac OS10.5 or above

11 ：Unit Dimensions:（ L x W x H )74 x 20 x 62 mm

12 ：Unit weight： 65g

13 ：Cable Length: 100 CM ±5%
